Handle - Plate - Oval

(Note: Measurements are outside max. dimensions unless stated otherwise).

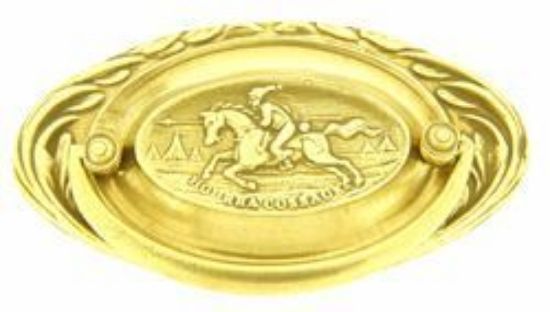

19th Century : Oval plate with 'D' handle.

Raised incription : "Hourra Cossack" : Charging cossack horse rider with background of field tents.

Option : This casting is supplied at a budget price with a basic machine tumble polished finish which is rather dull caused by minute pitting from bead blasting. We can buff polish by hand to a smooth finish as an option if selected by clicking on the OPTION box above, or supply machine polished if left unticked.

Pommel to pommel centres 72mm. (2 13/16")

BACKPLATE
Centres : 72mm. (2 13/16")
Height 61mm. (2 3/8")
Width 113mm. (4 7/16")
Depth 11mm. (3/8")

POMMEL
Diam. 9mm. (5/16")
Height 35mm. (1 3/8")
Head 9mm. (5/16") + round shaft 12mm. (7/16") + 14mm. (9/16") threaded rod.
Internal pommel hole diam. 4.5mm. (3/16")

HANDLE
Width 87mm. (3 7/16")
Inside width between peg ends 67mm. (2 5/8")
Height 32mm. (1 1/4")
Thickness 2mm. (1/16")
End pegs diam. 3mm. (1/8"), depth 5.5mm. (3/16")

Original would have been a pressed plate handle.

Supplied with correct period brass round nuts.
